Centrifuge Systems
265-530 GPH CENTRIFUGE SYSTEMS
Dealing with high-solids industrial wastewater or contaminated surface finishing process water? Our rugged, easy to use, basket style & automatic peeling centrifuges remove suspended solids & oils from your waste stream to facilitate reuse, discharge, or to optimize downstream evaporation systems. Learn more below.
![EZC-B265 centrifuge](https://www.ez-vap.com/hs-fs/hubfs/EZC-M250.png?width=300&height=319&name=EZC-M250.png)

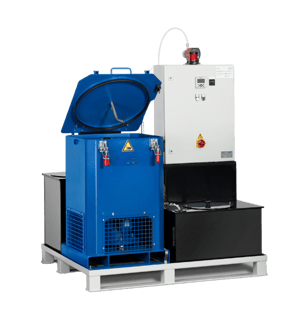

CENTRIFUGE MODEL
EZC-B265
(UP TO 265 GPH)
- Manually emptied solids basket
- Up to 265 gallons per hour
- Sludge basket capacity: 3.7 gal.
- 77 gallon wastewater feed tank
- Footprint: 56" x 44" x 69" (L x W x H)
- 480V-3PH (1.5 kW/hr)
- 1 Year Limited Warranty
![EZC-A265 peeling centrifuge](https://www.ez-vap.com/hs-fs/hubfs/EZC-A265c.png?width=300&height=319&name=EZC-A265c.png)

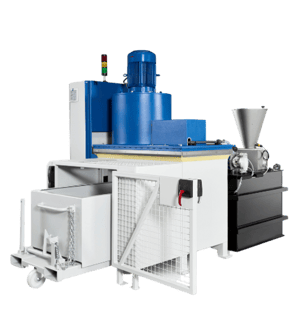

CENTRIFUGE MODEL
EZC-A265
(UP TO 265 GPH)
- Solids removal via automatic peeler
- Up to 265 gallons per hour
- Rotary drum capacity: 3.6 gal.
- 205 gallon wastewater feed tank
- Footprint: 99" x 67" x 83" (L x W x H)
- 480V-3PH (3 kW/hr)
- 1 Year Limited Warranty
![EZC-A530 peeling centrifuge](https://www.ez-vap.com/hs-fs/hubfs/EZC-A265c.png?width=300&height=319&name=EZC-A265c.png)
CENTRIFUGE MODEL
EZC-A530
(UP TO 530 GPH)
- Solids removal via automatic peeler
- Up to 530 gallons per hour
- Rotary drum capacity: 7.2 gal.
- 385 gallon wastewater feed tank
- Footprint: 83" x 111" x 93" (L x W x H)
- 480V-3PH (5 kW/hr)
- 1 Year Limited Warranty
APPLICATIONS
Any waste stream requiring removal of suspended solids is likely a good candidate for a centrifuge system from EZ Industrial.
Following are a few examples of common applications.
Featured EZ-Vap Applications

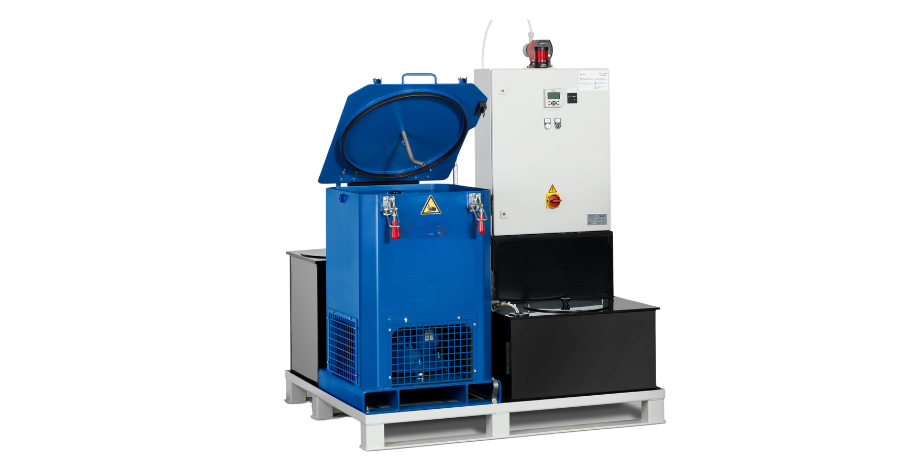

AIntegral feed tank (click for info)
BPLC Control Panel (click for info)
CSolids Basket (click for info)
DClean Water Tank (click for info)
ESkid Mounted - Small Footprint (click for info)
![EZC-M250f](https://www.ez-vap.com/hs-fs/hubfs/EZC-M250f.png?width=912&height=458&name=EZC-M250f.png)
A
Integral feed tank
Integral feed tank includes an industrial mixer to facilitate addition of flocculant.
B
PLC Control Panel
PLC based system enables automatic operation including centrifuge imbalance monitoring and control.
C
Solids Basket
Solids basket is easy to remove and clean. No tools required!
D
Clean Water Tank
Centrate water (clean) is discharged to the integral clean water tank on the skid before being pumped down stream to a holding tank or to drain.
E
Skid Mounted - Small Footprint
Rugged skid mounted system includes all tanks integrated on a single skid, minimizing footprint, and ensuring ease of install & operation.
